Medium to large site with many users

  • You need duress and voice communication between many users on a larger site.
  • You may need to know the location of a person within a few metres.
  • There are multiple buildings within a complex and you need to know which building the alarm came from.
  • Transmitting distances that are more than 300 m.

Warehouse

Warehouse

Hospital

Hospital

Medical Centre

Medical Centre

Manufacturing

Manufacturing

This can be an expanded version of the previous solution for smaller sites and you need to know the general location of the person, such as in a building. You may also need the capability for users to talk with each other, such as in a hospital or large manufacturing site. Generally, in a duress situation you will know where they are because their transmitter is pre-assigned to a specific area.

Another need can be when people can be anywhere in a facility, and you need to know exactly where they are in a duress situation. Here, the transmitter signals to a network of sensors which then receive the message and calculate where the person is, sending a signal back to a computer panel. This application could be appropriate for an aged care facility or a large busy warehouse.


Medium to large site products

You may have many users across a large site. They need to be able to notify others onsite of a duress event, or even talk to each other. And you need to know where they are so help can be given quickly. You may need voice contact. You may need to alert others off site. We offer several systems, the key features and benefits of which are described here.

System 1: Wi-Fi based duress and person-down real-time location system (RTLS)

  • Wi-Fi duress and location systems are rapidly becoming the duress system of choice worldwide for organisations needing to provide an advanced level of care to their staff and others visiting their sites.
  • Suitable for hospitals, schools, hotels, aged care, retirement villages, offices, warehouses and manufacturing.

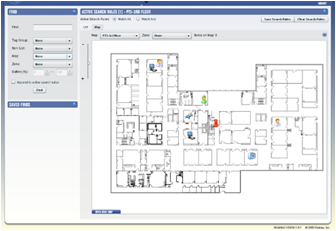

Location and management software

Location and management software

Vision 2 software gives administrators unprecedented visibility into the location, condition and status of people, assets and workflows via a web browser.

  • patented system locates event to within 3 metres
  • operates on your existing Wi-Fi network or we can design and install a network
  • all events are logged
  • allows messaging out to tags.

Location and management software

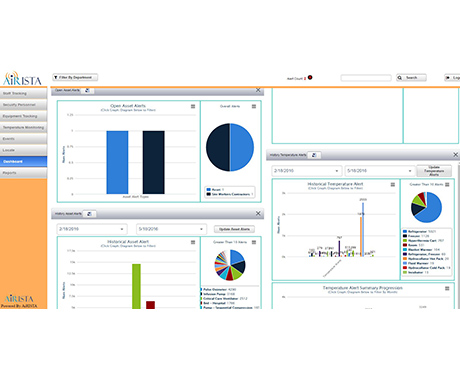

Business intelligence through location

AiRISTA Flow gives managers and end users unprecedented visibility into the location, condition, and status of assets, people, and workflows across EDS, ORs, plant floors, or other departments, via web browser. AiRISTA Flow software seamlessly integrates with all AiRISTA Flow RTLS platforms using GPS, Time Difference of Arrival (TDOA), and Received Signal Strength Indicator (RSSI) Location Tracking.AiRISTA Flow software includes:

  • patented Wi-Fi based location analytics
  • uses actual floor plans and visual icons to display the building, floor, zone, room, and sub-room locations
  • status (on, off, alarmed, etc.) of tracked assets and people.

Features and benefits of EKAHAU/AiRISTA Flow software

  • single web-based sign on and multiple permission and access levels includes tag management and over-the-air firmware upgrade management
  • Open API simplifies integrations with leading medical device, HER, and IT systems
  • combination of several popular technologies including RFID, RSSI, TDOA, and GPS
  • scalable for any sized enterprise for tens of thousands of tags and multiple campuses
  • 10 patents for “RF fingerprinting” locating algorithms for room-level accuracy over Wi-Fi

Business intelligence through location

Staff pager tag

  • lightweight tag has three alerting options plus person-down detector
  • sends text to all other tags identifying who has raised the alert and where they are
  • also messages to central computer and shows location on a floor plan, accurate to within 3 metres
  • others on or offsite can be further alerted via email, SMS or phone message.

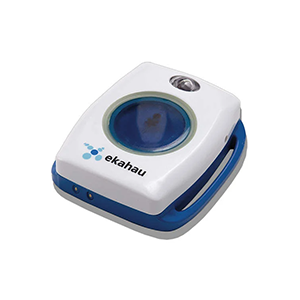

Wearable tag

Wearable tag

  • straps on like a watch
  • press button for duress alert
  • receive a notification to act
  • enables real-time visibility of a person’s exact location (for example a child, or visitor in a hospital).

Wearable tag

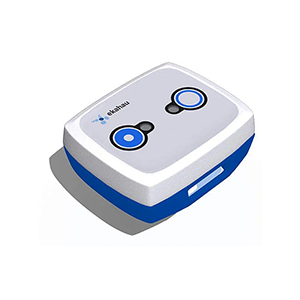

Asset Tag

  • asset tag affixed to your expensive equipment locates and tracks missing assets.

Temperature and humidity tags

Temperature and humidity tags

  • tag alerts when humidity or temperature-sensitive equipment like refrigerators moves out of the allowable range.

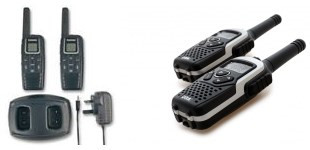

System 2: Digital enhanced wireless duress handsets with voice/data/messaging to cover the sites you need

Temperature and humidity tags

Introduction

Professional quality systems available where users carry portable digital handsets of small lightweight and if-needed rugged construction. We have over 20 years of experience customising solutions using these advanced duress solutions with voice/data/messaging features. The wireless handsets can provide many functions from simple to advanced depending on your need and budget. The main benefit of these systems is the additional features we can incorporate in addition to the duress, lone-worker, person down no-motion features. Gain quality voice communication to/from users both on-site and off-site.

Temperature and humidity tags

Features

  • advanced duress and person-down, lone-worker functionalities
  • two-way voice with both group-calling and secure one-to-one calling options
  • text messaging from other staff and from mobile phones, operators and machine-alarms
  • identify duress alarm locations usually to nearest 50 metres
  • more accurate location also available down to 10 metres outdoors and 5 metres indoors
  • signals can cover some areas or all areas of a site no matter the size
  • expandable as site or budget changes or grows
  • external send/receive calls and/or messages
  • activate siren/strobes, security alarms, gates and lock-down
  • link into existing site alert systems such as building management, intrusion alert, fire and other emergency systems
  • tailoring to your specific requirement means you don’t pay for what you don’t need.


Many options exists:

Call us for a discussion about your needs on 1300 765 543 or outside Australia on +612 9412 2100.
